 "MACHADO" launched to market:

Creative Laser Production has ready developed their first computer generated digitalgrating, the MACHADO. This LINE grating glance with its high effect angle and the extraordinary high density in orders, similar to the popular MACHIDA grating (Machida Inc. Tokyo), but much more economic in pricing.

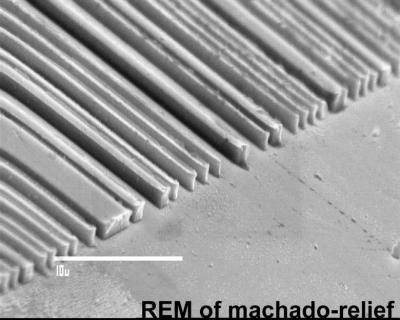

The MACHADO comes on glas substrate (1x1inch) with a usable beam aperture of 8x12mm, excellent power rating of more than 7 Watts and good zero order suppression. The master relief structure has been calculated and optimized via CAD interferometric simulation and then directly inscribed in a chromium layer on glas with an electron beam lithograph. Special glas etching process in fluor vapor phase converts finally the chromium mask to a relief structure in glas.

Most of the masking processes are quite similar to production of ultrahigh scale integration semiconductor chips using state of the art technologies, which are quite sophisticated in their kind.

The MACHADO is an excellent tool to create artistic beam effects with hundreds of colored beams over a wide fan angle, which a scanner will never be able to produce.

Let's go MACHADO.


Machado-beams, picture courtesy by Patrick Dietzel,


  • Price: €UR 78,54  inkl. 19%MwSt
  • Ordercode: machado
